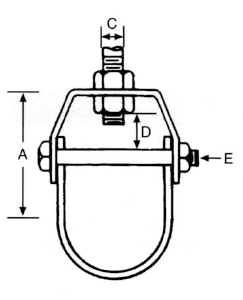

CLEVIS HANGERS
IRON PIPE
*SIZE AVAILABILITY: 1/2” thru 30”
*FINISH: Black, Galvanized
COPPER TUBE
* SIZE AVAILABILITY: 1/2” thru 6”.* FINISH: Electro copper plated.
- The Clevis Hanger provides a vertical adjustment of 1-1/2”. By adjusting the lower nut, the pipe line is assured of proper pitch. The top nut locks it in place.
- This feature allows for adjustment before or after piping is installed.
- Nuts are not included with the hanger and must be ordered separately.
- Recommended use with stationary pipe lines and copper tube lines.
- Made from carbon steel.
- The top half of hanger is fitted over the outside of the lower u-strap, giving it added strength.
- Complies with Federal Specifications WW-H-171b (Type 1) and WW-H-171e (Type 12).
- Similar application compliance to MSS Type 1.
NOTE: Nuts and washers need to be used on both sides of the top part for proper installation.
* ORDERING: Specify iron pipe or copper tube size, figure number, name and finish.
