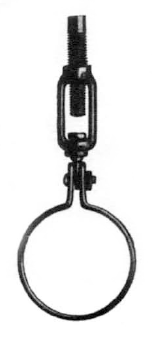

GOVERNMENT RING
IRON PIPE
* SIZE AVAILABILITY: 1/2” thru 14”
* FINISH: Black, Galvanized
- The Modern Fig. 404 is made from low carbon 1008-1010 material.
- This band ring is used for low pressure steam lines, return, water, air, gas, soil, waste and vent pipelines.
- Lighter pipe applications, such as PVC or conduit, can also be used with this band ring.
- The band is often used with the figure 540, turn buckle adjuster.
- The ring and turn buckle combination allows for adjustment from 1 to 2 inches, depending on the size of the turn buckle.
- The swivel has the capability to swing when pipe lines have slight movement horizontally or vibration movement vertically.
- Complies with General Services Administration WW-H-171b.
* ORDERING: Specify pipe size, figure number, finish and hanger adjuster, if needed.
COPPER TUBING
* SIZE AVAILABILITY: 1/2” thru 6”* FINISH: Copper Plated (Fig 48) or All Copper (Fig 49)
- Fig 48/49 is used with Fig 83 or 121 adjuster.
- They can be used with insulated pipe or bare pipe.
* Ordering: Specify tube size, figure number, finish, and adjusters required.
